Hydraulic Cylinder

Actual Photos of Truck-Mounted Crane Cylinders by Location:

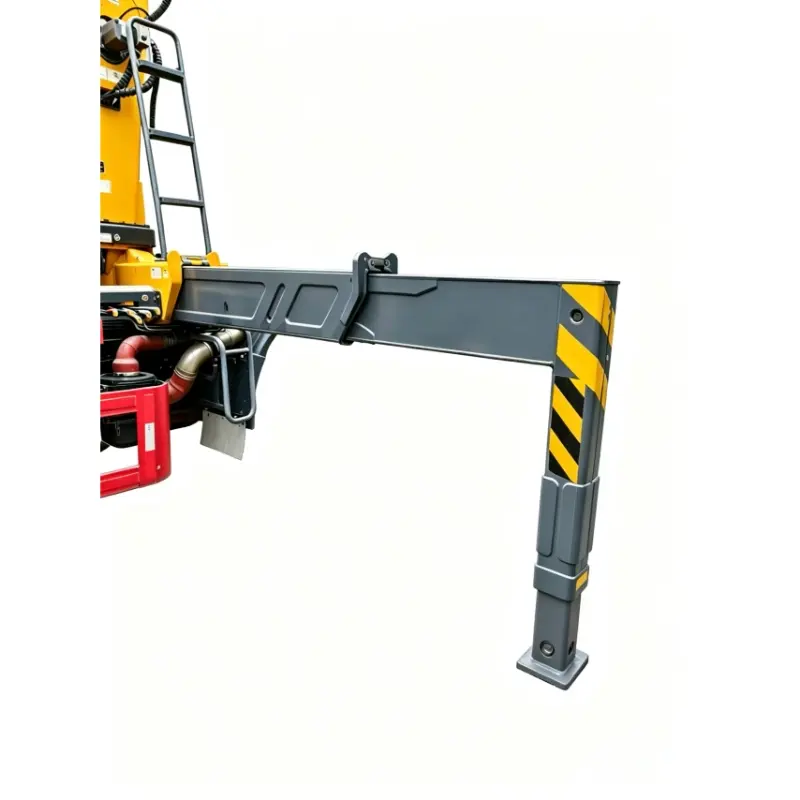

✔：Rear Outrigger Horizontal Cylinder for Truck-Mounted Crane

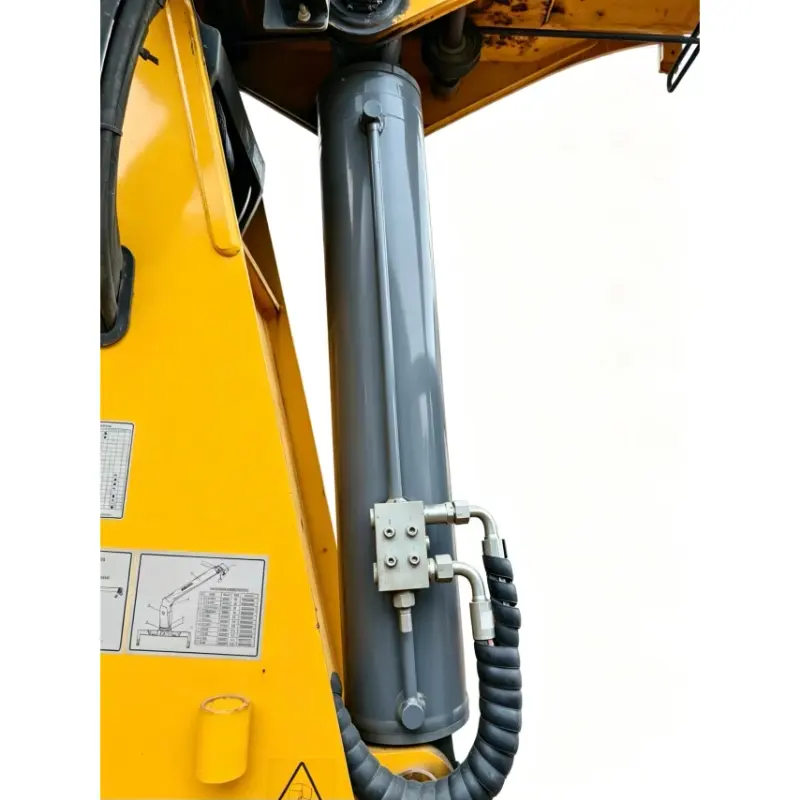

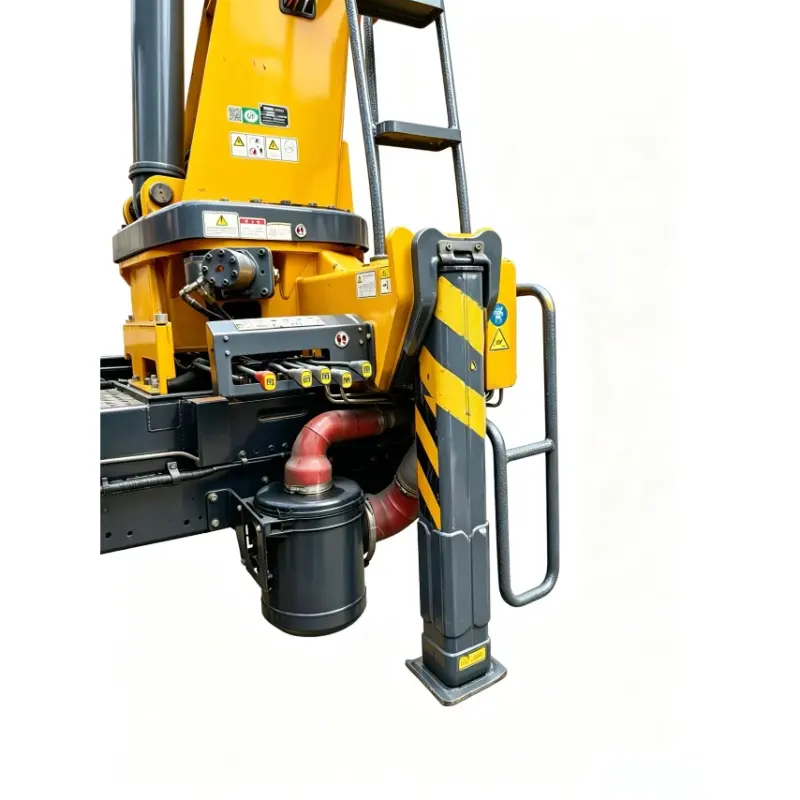

✔：Front Outrigger Vertical Cylinder for Truck-Mounted Crane

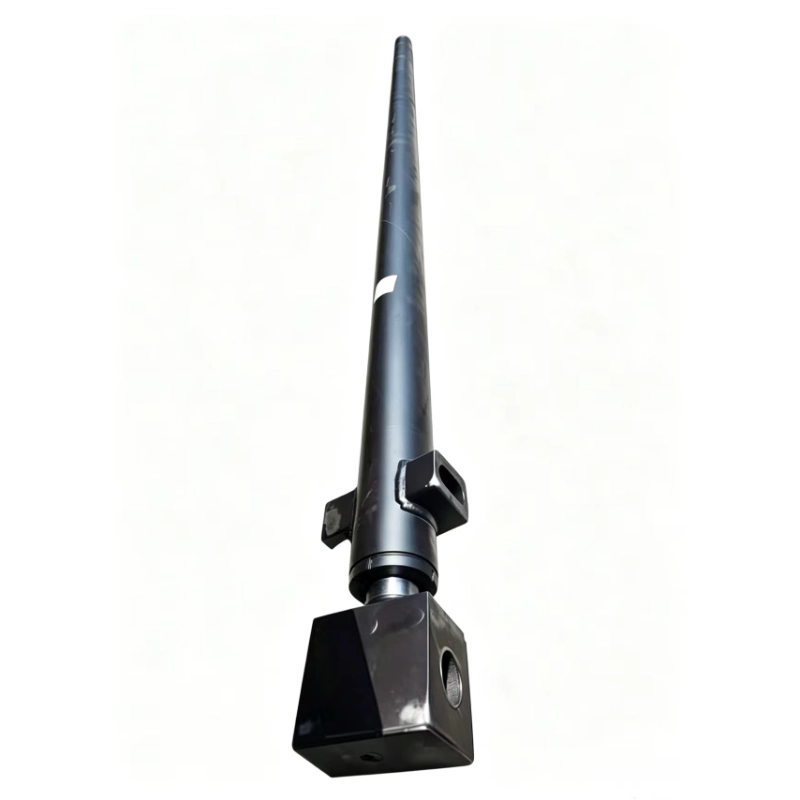

✔：Luffing Cylinder for Truck-Mounted Crane

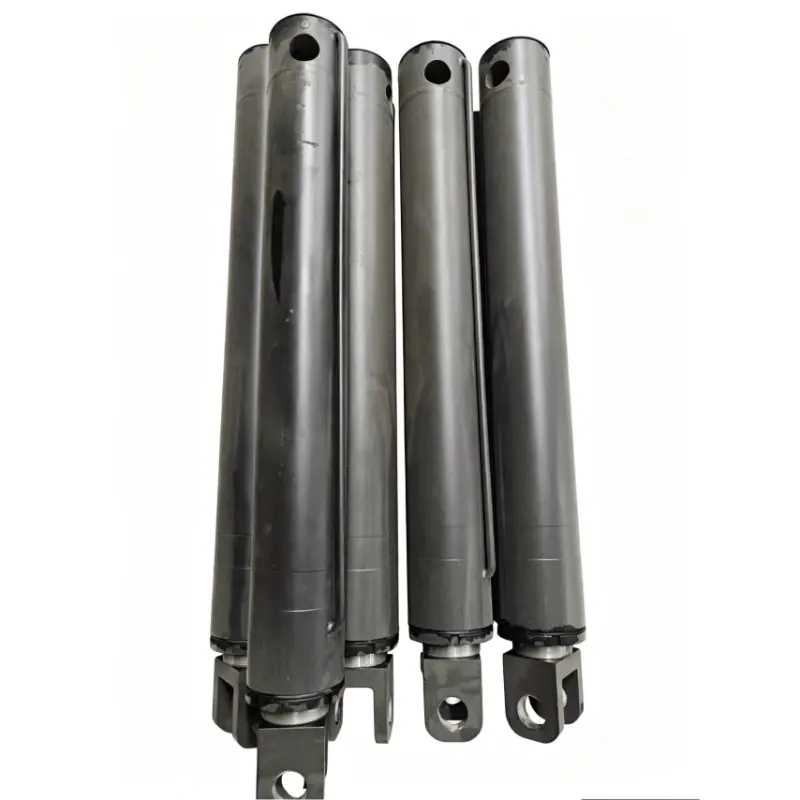

✔：Front Outrigger Horizontal Cylinder for Truck-Mounted Crane

✔：Rear Outrigger Horizontal Cylinder for Truck-Mounted Crane

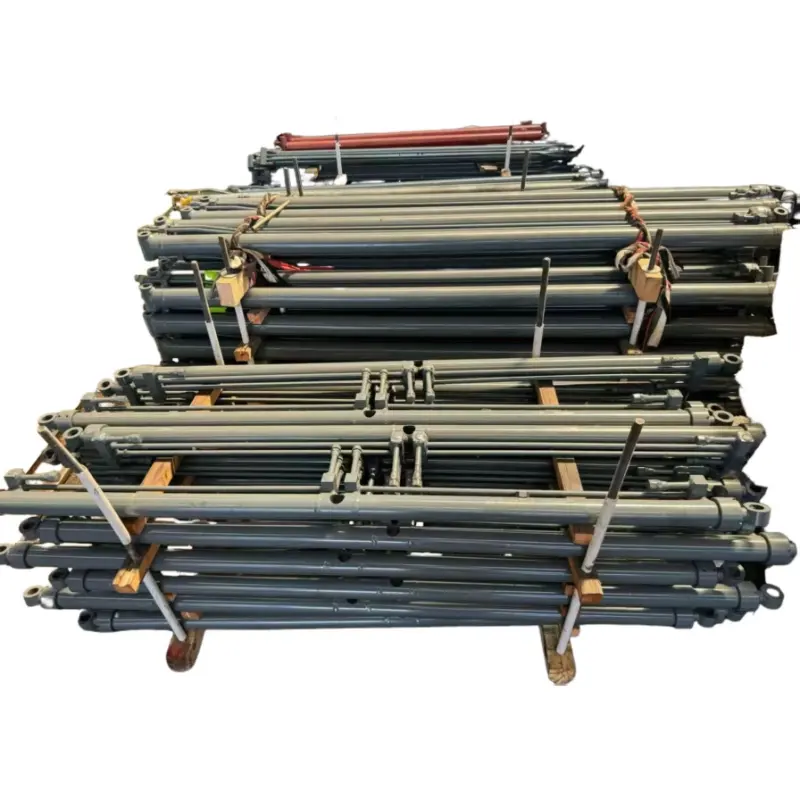

✔:Various types of truck-mounted crane hydraulic cylinders can be customized

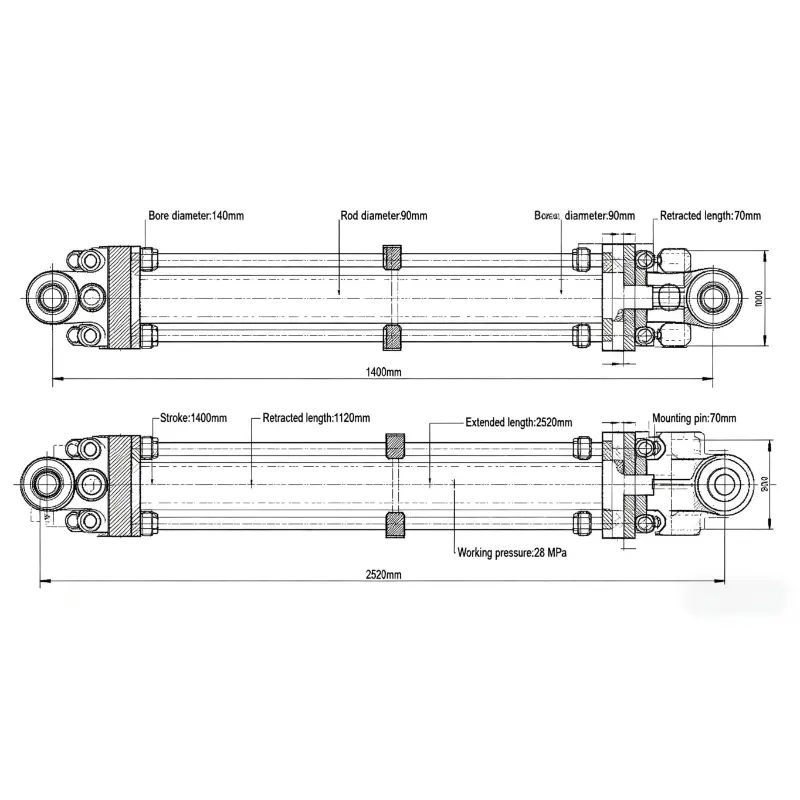

Basic Parameters:

Bore diameter:	140mm
Rod diameter:	90mm
Bore diameter:	90mm
Retracted length:	70mm
Total width:	100mm
Total length (upper view):	1400mm
Stroke:	1400mm
Retracted length:	1120mm
Extended length:	2520mm
Mounting pin:	70mm
Outer diameter:	200mm
Total length (lower view):	2520mm
Working pressure:	28 MPa

As the core power components of truck-mounted cranes, hydraulic cylinders come in a wide variety of types, including vertical, horizontal, luffing, telescopic cylinders and others.
The adaptation requirements vary significantly across different working conditions, brands and crane models.
Due to limited page space, we are unable to display every single model, so we only provide general classifications to help you focus on key product categories.

Drawing on our professional expertise and extensive industry resources, we conduct in-depth analysis of technical parameters, working characteristics and matching logic for all types of cylinders.
Whether you need to replace original standard cylinders or source suitable alternatives for specific working scenarios, we can efficiently find highly compatible hydraulic cylinder products in the domestic market based on our precise industry knowledge and complete supply chain, effectively solving your difficulties in product selection and matching.

What’s more, we provide reliable customized services.
For non-standard specifications, special working conditions or modified crane models, our professional technical team will communicate with you one-on-one to understand your exact requirements.
Combining key parameters such as load capacity, stroke length and sealing configuration, we custom-make hydraulic cylinders that fit your actual application scenarios.
From initial consultation to final solution delivery, we provide full professional support to ensure every cylinder is precisely matched, stable and durable, delivering long-lasting and reliable hydraulic support for your truck-mounted crane.
