The PTO hydraulic pump is the core power component of a truck mounted crane’s hydraulic system. It is driven by the truck chassis engine through the power take-off unit, converting mechanical power into hydraulic power.
It supplies high-pressure hydraulic oil to control the outrigger extension and retraction for stable vehicle support. After the outriggers are set, the hydraulic power is switched to drive the crane boom’s luffing, telescoping and slewing movements. It cuts off power during traveling to avoid idle wear, ensuring safe and efficient lifting operations.
There is no fixed price for the undercarriage PTO pump of truck-mounted cranes. Its price varies greatly depending on model, adapted tonnage, original or aftermarket quality, purchase quantity and market conditions. The price on the page is for reference only and not a fixed quotation. Please inquire for the exact price according to your specific specifications.
High-strength ductile iron housing for shock resistance and long service life.
Alloy steel gears with heat treatment for low wear and stable output.
Dual pump design for multi-function operation, easy installation.

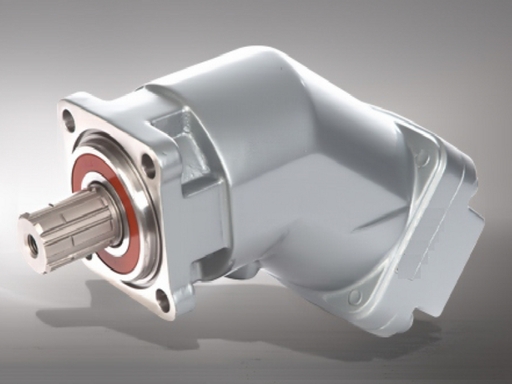

Model:
2PBA 108 (Standard Version)
Structure:
Inclined axis fixed displacement piston pump
Theoretical Displacement:
108.4 cc/rev
Rated Working Pressure:
350 bar (35 MPa)
Peak Pressure (Intermittent):
400 bar (40 MPa)
Max. Continuous Speed:
1700 rpm
Max. Limiting Speed:
1900 rpm
Min. Speed:
500 rpm
Drive Torque:
620 Nm @ 350 bar
Volumetric Efficiency:
≥ 97.5%
Weight:
15.5 kg

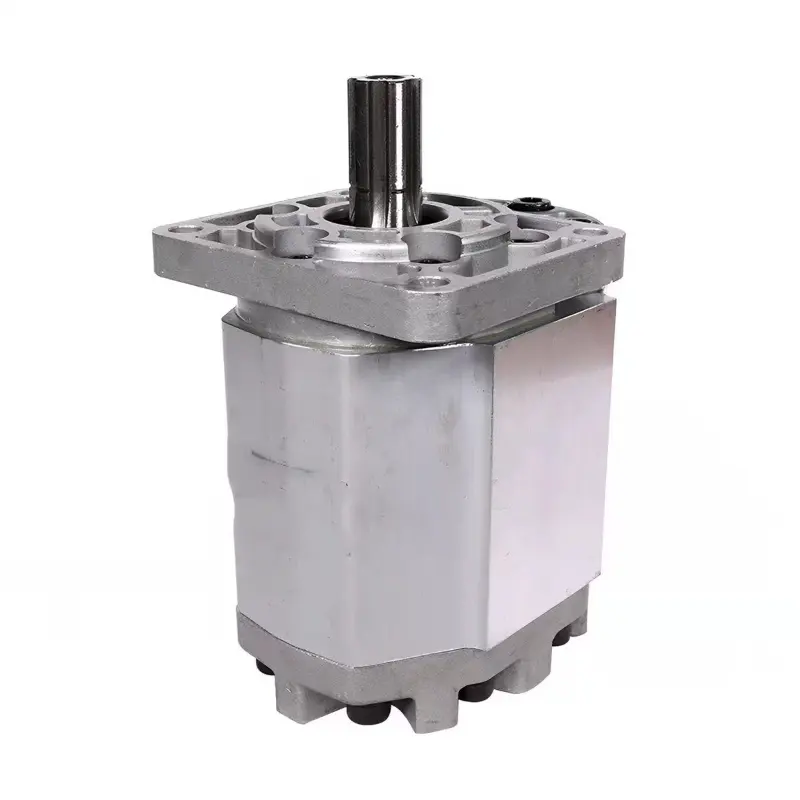

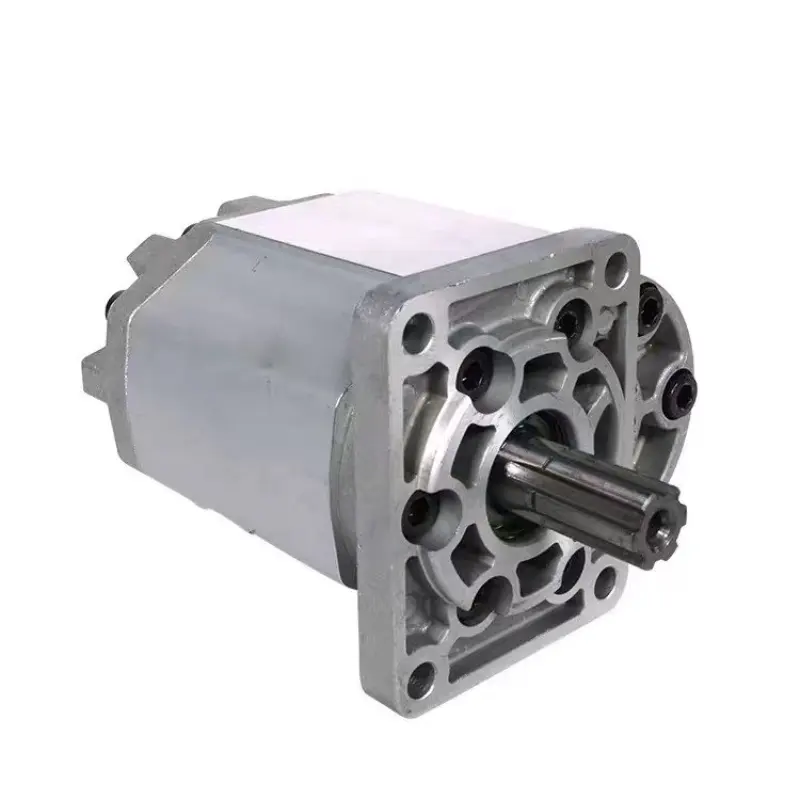

This is a high-performance single gear pump for truck-mounted cranes and construction machinery Low noise, reliable operation.
Key Specs:
Displacement: 50 mL/r
Rated pressure: 20 MPa (peak up to 25 MPa)
Max speed: up to 3000 r/min
Advantages:
Lightweight, high-strength aluminum housing for excellent heat dissipation and shock resistance.
Heat-treated alloy steel gears ensure low wear and long service life.
Automatic axial clearance compensation maintains high volumetric efficiency over time.
1.Genuine Original Quality: 100% original factory product, suitable for mainstream truck-mounted cranes including XCMG, Sany, Shimei, etc.
2. High Pressure Stability: Rated pressure design, ideal for heavy-duty lifting conditions of truck cranes.
3.High Efficiency & Low Noise: Automatic axial clearance compensation, high volumetric efficiency and low operating noise.
4. Full Series Compatibility: Covers the lower hydraulic system of 2–20 ton truck-mounted cranes, universal for maintenance replacement and complete machine matching.
5. Foreign Trade Support: Chinese-English technical documents, part number customization.
