Product Description

Single-Cavity Outrigger Horizontal Hydraulic Cylinder

Core Parameters：

• Bore/rod diameter: 80mm / 45mm
• Structure: Single-section & single-cavity (single/double acting)
• Working stroke: 1500mm
• Rated pressure: 26MPa
• Max thrust: 130kN
• Max tension: 85kN
• Installation center distance: 1300mm
• Outrigger span: 2310mm – 5700mm
• Working temperature: -25℃ ~ +40℃
• Installation type: Double-lug hinged
• Built-in balance valve/hydraulic lock, lockable at any position

Application: Suitable for XCMG, SANY, Shimei and other mainstream brands, 5-12 ton four-section boom truck cranes with single-cavity outriggers.

Product Description

Outrigger Vertical Hydraulic Cylinder

Core Parameters

• Bore / Rod Diameter: 100mm / 50mm
• Structure: Single-stage double-acting with mechanical limit
• Working Stroke: 600mm
• Rated Pressure: 26MPa
• Maximum Thrust: 204kN
• Maximum Tension: 102kN
• Installation Type: Upper flange + lower spherical hinge
• Hydraulic Lock: Top built-in integrated hydraulic control check valve
• Working Temperature: -25℃ ~ +40℃
• Application: Suitable for 5~12 ton truck cranes of XCMG, SANY, Zoomlion and Furukawa, compatible with single-cavity / double-cavity square box outriggers

Note: Due to different crane tonnages, the parameters of outrigger hydraulic cylinder vary accordingly with tonnage.

Product Description

Truck Crane Single-Cavity Rear Outrigger Horizontal Hydraulic Cylinder

General Core Parameters (Slight adjustment by tonnage)

• Bore / Rod Diameter: 80 mm / 45 mm
• Structure: Single-stage double-acting, without mechanical limit
• Working Stroke: 750 mm (effective extension)
• Rated Pressure: 21 MPa
• Maximum Thrust: 105.6 kN
• Maximum Tension: 68.7 kN
• Installation Type: Front flange + rear trunnion
• Hydraulic Lock: Not equipped (no lock for horizontal cylinder)
• Working Temperature: -25℃ ~ +40℃
• Application: Suitable for 5–12 ton single-cavity square box rear outriggers of XCMG, SANY, Zoomlion and Furukawa

Note: Double-cavity rear outriggers are optional for tonnage above 14 tons. Parameters may vary in different batches and configurations, please refer to the factory nameplate for standard data.

Internal components

Crane Fixed Outrigger Leg / Stationary Outrigger Support for 5-12 Ton Truck Crane

Genuine OEM Parts & Custom Solutions for Truck Crane Hydraulics & Outriggers

Keep Your Crane Running with 100% OEM-Quality Parts

We supply a full range of genuine OEM replacement parts for truck crane hydraulic cylinders and outrigger systems, designed for perfect fit, reliable performance, and long service life.

✅ Full OEM Assemblies & Components

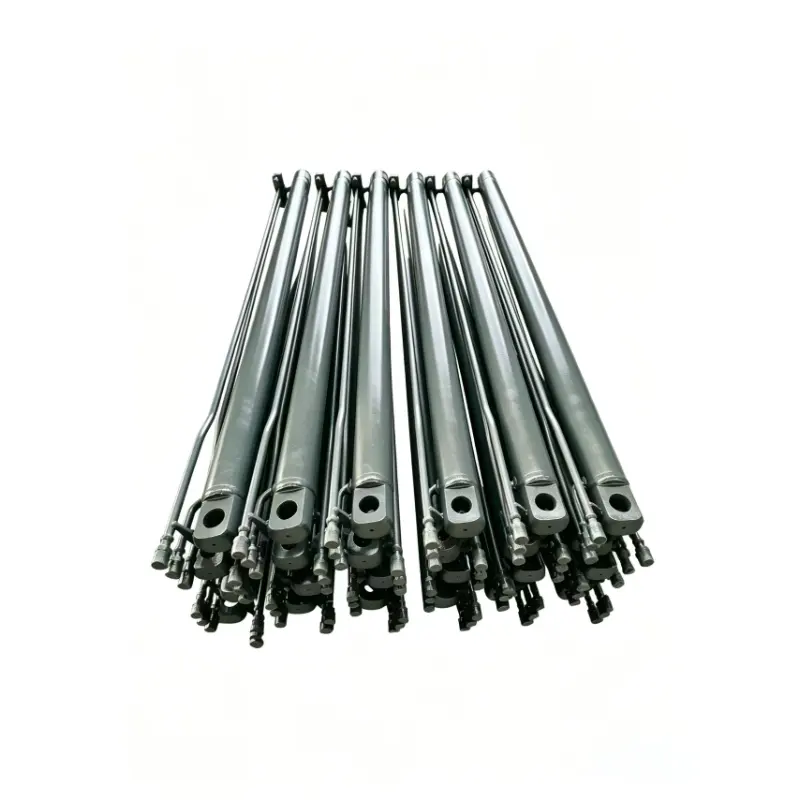

• Complete hydraulic cylinder assemblies (outrigger, luffing, telescopic, hoist)

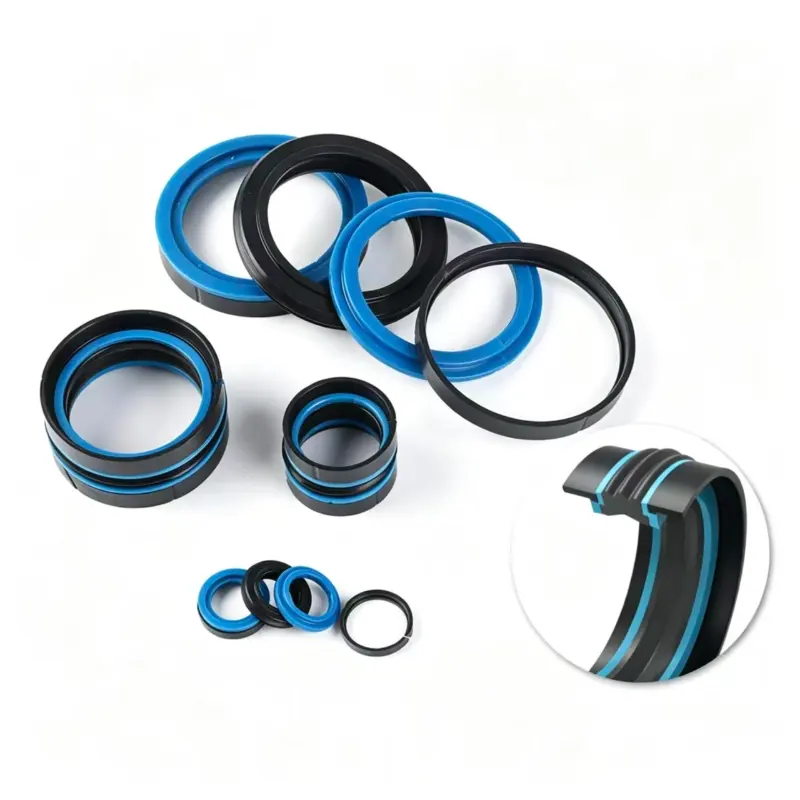

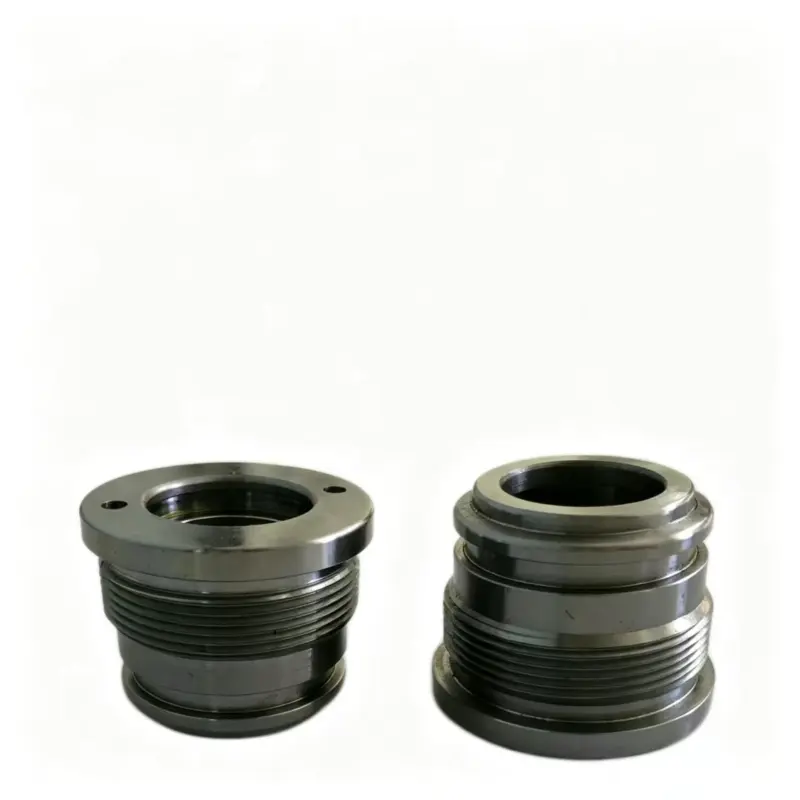

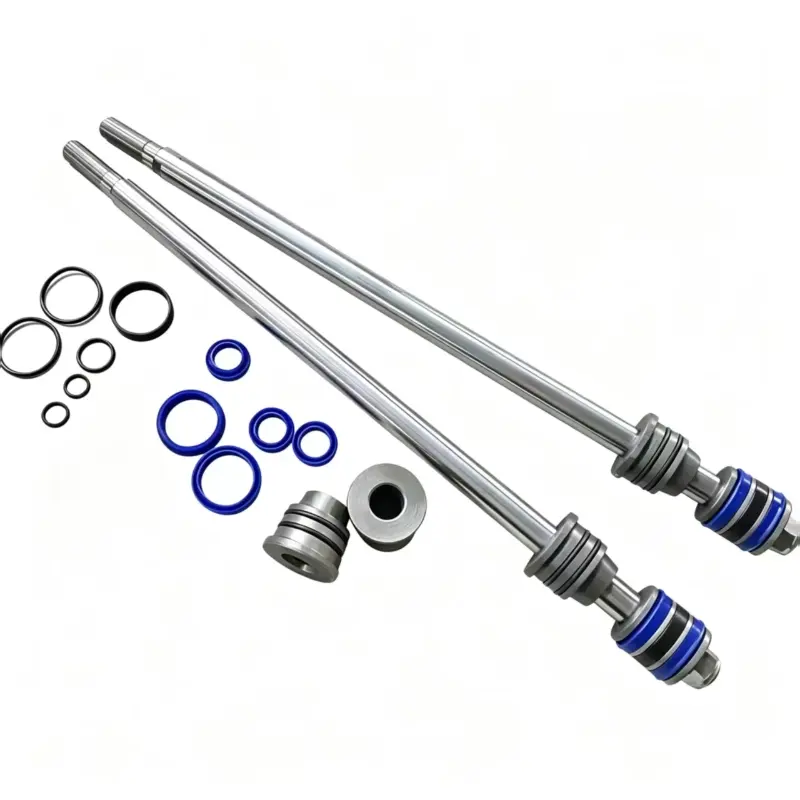

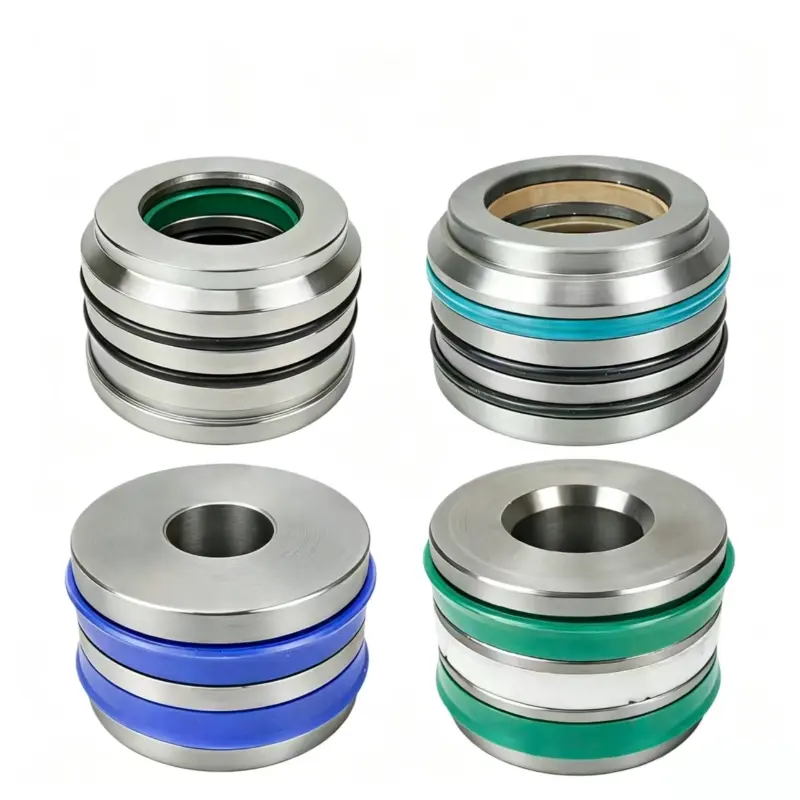

• Cylinder internal parts: piston rods, guides, pistons, seal kits, barrels, and clevis ends

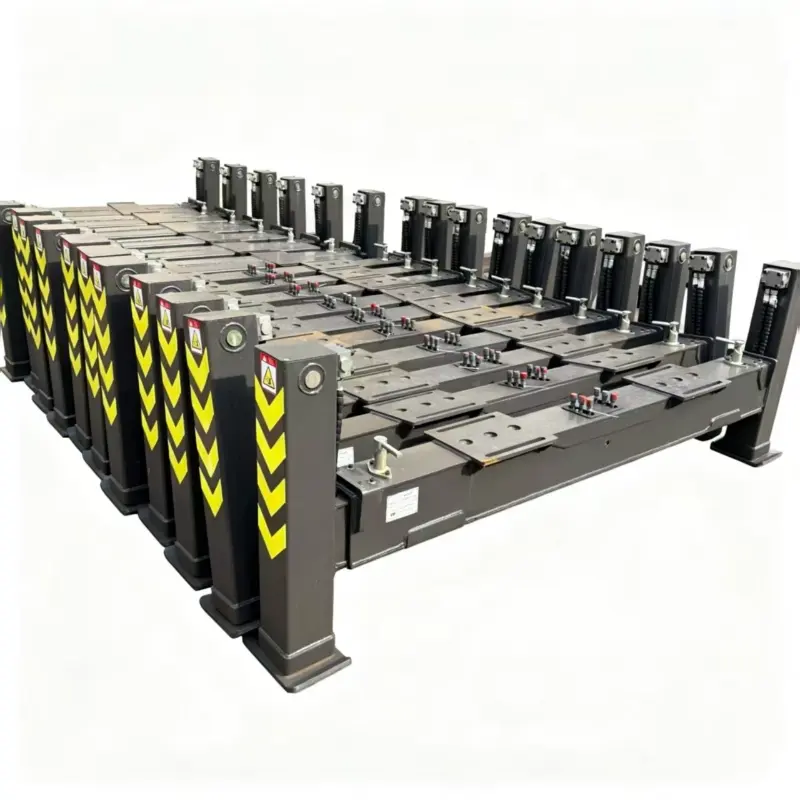

• Full outrigger assemblies (H-type / L-type / T-type) with beams, telescopic arms, cylinders, and pads

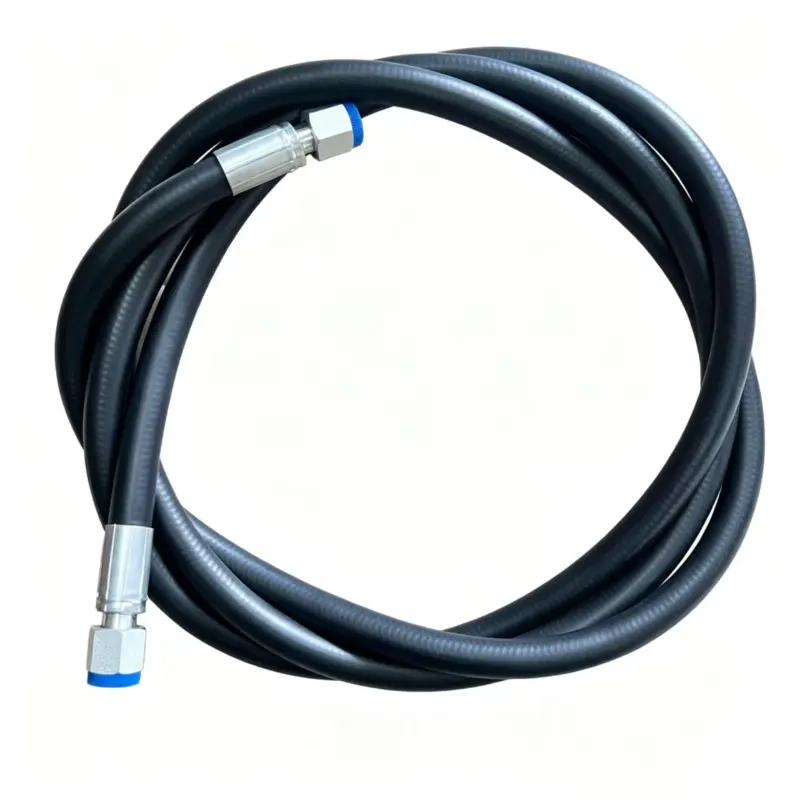

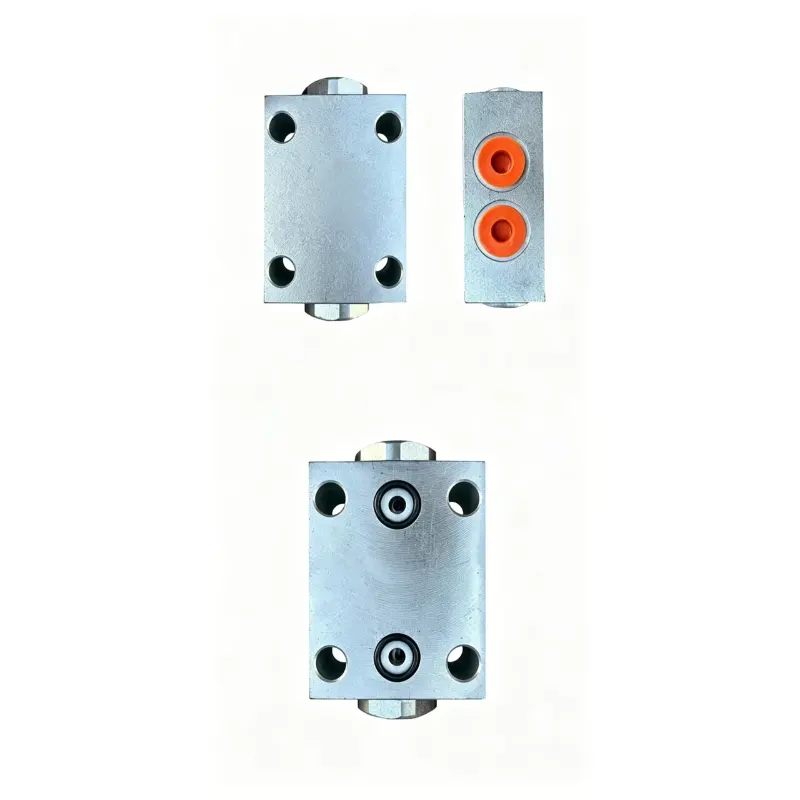

• Outrigger system parts: beams, boxes, hydraulic locks, hoses, pins, and bushings

✅ Customization Available
Need non-standard parts? We offer tailored solutions:

• Custom hydraulic cylinders (stroke, bore, rod diameter to your specs)
• Custom outrigger forks and support structures for special chassis or applications

⚠️ Important Note: Custom products require technical consultation before ordering. Please contact us with your equipment model and specifications for a personalized quote.

Why Buy From Us?

• 100% OEM quality materials and processes, no cheap alternatives
• One-stop sourcing for all your crane hydraulic and outrigger needs
• Fast shipping on standard parts, dedicated support for custom orders
• Experienced technical team to help you find the right parts

For parts compatibility checks, pricing, or custom project inquiries, contact our sales team today. We’ll get your crane back up and running fast.
