Description

Telescopic Cylinder General Specifications

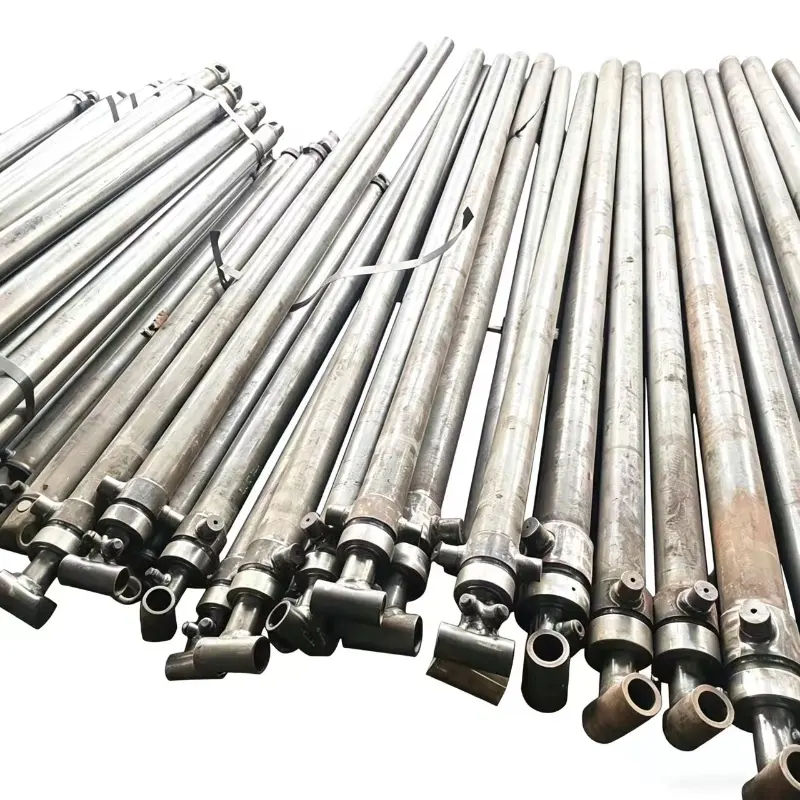

Cylinder Body (Single Cylinder Synchronous)

• Bore: Φ80–140mm (Common size: 100/110/125mm)
• Rod Diameter: Φ45–90mm (Common size: 56/63/70mm)
• Stroke: 2500–4500mm (Corresponding boom length: 12–16m)
• Rated Pressure: 25MPa (System pressure: 20–25MPa)
• Maximum Pressure: 30–35MPa
• Mounting Type: Hinge Shank / Trunnion (Middle Hinge / Rear Hinge)
• Material:
  Cylinder Tube: 27SiMn / 16Mn
  Piston Rod: 42CrMo quenched and tempered + hard chrome plating

1. Parameters for Applicable 4-Section Boom Crane

• Boom Length: Basic boom 4.0–4.5m, fully extended 11–16m
• Working Radius: 10–14m (Fully extended)
• Lifting Height: 12–18m
• Telescoping Speed: Extension ≈25–35s, Retraction ≈20–30s (No-load)

1. Applicable Tonnage

Mainly suitable for 5–16 ton straight boom truck-mounted crane with 4-section boom:

12–13T: 4-section boom

5T: 4-section boom 11–12m, Bore Φ80–90mm, Rod Φ45–50mm

6.3T: 4-section boom 11–12.5m, Bore Φ90–100mm, Rod Φ50–56mm

7T: 4-section boom 12–13m, Bore Φ100mm, Rod Φ56–63mm

8T: 4-section boom 12.5–13.5m, Bore Φ100–110mm, Rod Φ63mm

10T: 4-section boom 13–14.5m, Bore Φ110–125mm, Rod Φ63–70mm

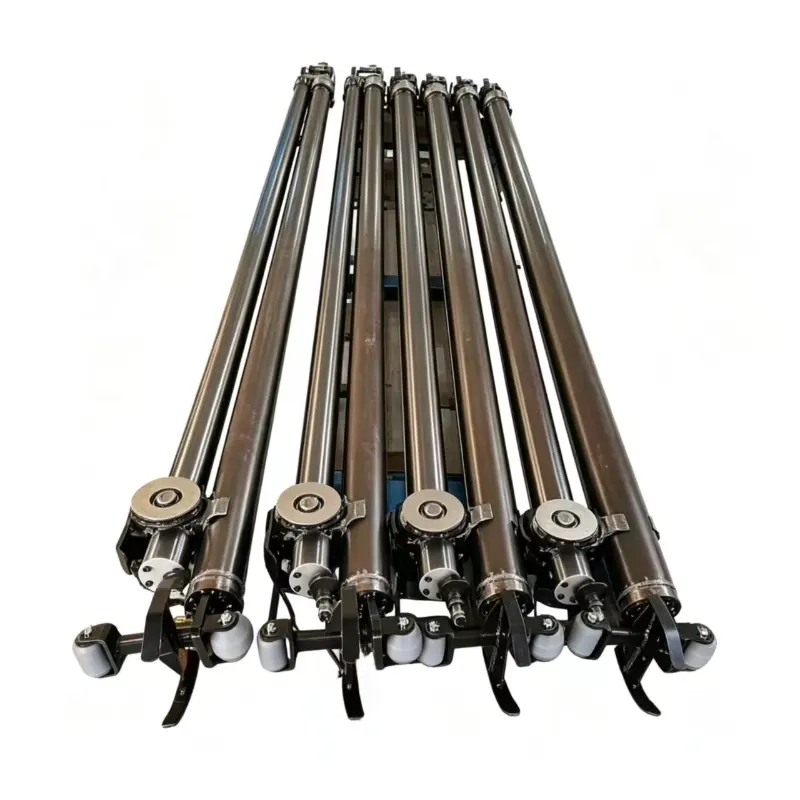

Dual telescopic boom cylinder

This dual telescopic boom cylinder is specially designed for 5-section boom truck-mounted cranes, with standardized design and strong universality, compatible with XCMG, Sany, Shimei, Furukawa, Zoomlion and other leading crane brands.

1. Cylinder Barrel: High-strength thick-walled seamless steel, 90-150mm bore, precision honed inner wall for wear & pressure resistance.

2. Piston Rod: Solid high-carbon steel, double hard chrome plated, 50-85mm rod diameter, anti-rust, anti-scratch & anti-bending.

3. Stroke: Standard 1800-2800mm, customizable to fit 5-section boom full extension.

4. Pressure: Rated 25-31.5MPa, max peak 35MPa, matched with standard crane hydraulic systems.

5. Installation: Front & rear clevis mounting / flange mounting, standard pin hole & universal mounting distance.

6. Seals: Imported NOK/Parker seals, operating temp -30℃~85℃, leak-proof & wear-resistant for global working conditions.

7. Craft: Integral welded with weld inspection, quenched & tempered barrel, high load capacity & long service life.

At present, the mainstream boom telescopic cylinders for truck-mounted cranes are divided into two types: single cylinder and dual cylinder, fully compatible with all tonnages and boom section types of truck cranes.

We focus on foreign trade supply and can provide original specification matching cylinder assemblies, which perfectly fit global mainstream crane brands such as XCMG, Sany, Zoomlion and Furukawa.

Meanwhile, we can customize telescopic cylinders in China for you. You only need to provide technical parameters and installation dimensions, and we can produce products that support direct replacement without any modification.

With reliable quality and sufficient stock, we provide one-stop supply solutions for overseas customers’ equipment repair, replacement and stock preparation, helping your machines return to efficient operation quickly.
